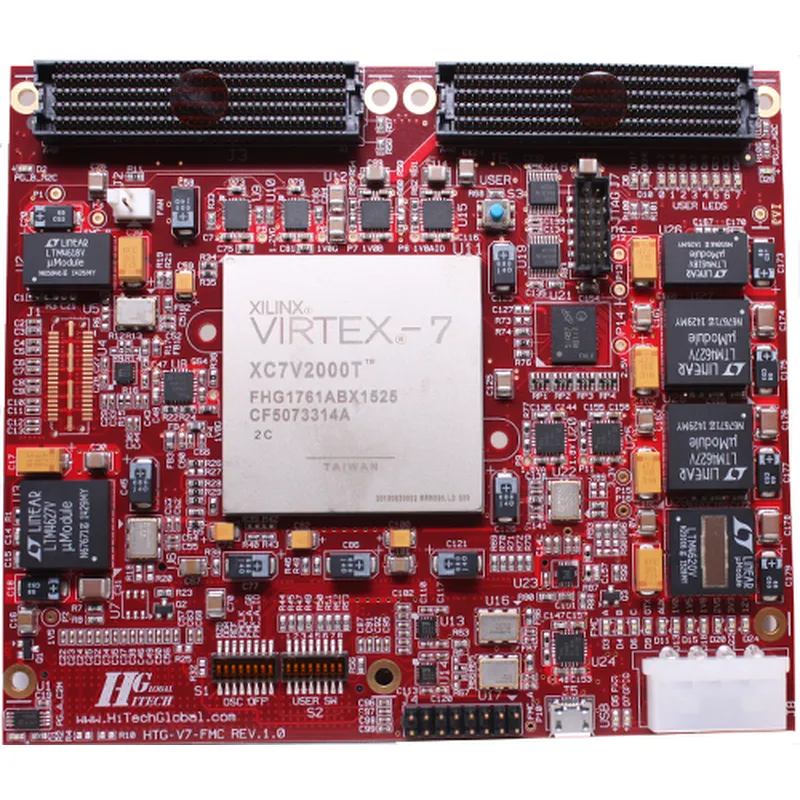

►x1 Virtex-7 V2000T, X690T, or V585T FPGA in FHG1761 package
►x3 High Pin Count (HPC) FMC
- FMC #B & C: Each providing 160 Single-end (80 LVDS) + 8 GTX/GTH Serial Transceivers - used for hosting FMC daughter cards or another HTG-777 card expanding the total density of the design
- FMC #A: 160 Single-end (80 LVDS) + 8 GTX/GTH Serial Transceivers - used for mating with FPGA carrier cards
►x2 Samtec QSE and QTE connectors each with 6 GXT/GTX Serial Transceivers - used for I/O expansion or stack up of multiple V7-FMC module
►x1 DDR3 SODIMM socket supporting up to 8GB of memory (shipped with 1GB module)
►Flash for configuration and storage
►x1 USB/UART port
►I2C Bus Switch
►Size: 5 1/2" x 4 1/2"
